Scott Spark 970

Scott Spark 970
  • Color: Orange
  • Color: Blue
$2,899.99
Color:
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please check back.

Details

When you think of the perfect mountain bike, what comes to mind? For us, it's the all new Spark 970. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.

KEY FEATURES
- Spark Alloy SL Frame
- RockShox Judy 130mm Fork
- X-Fusion Nude 5, 120mm, TwinLoc
- SRAM NX-SX Eagle 12 Speed
- Shimano Disc Brakes
- Syncros X-30SE TR Rims
- Schwalbe Wicked Will Tires
- Syncros Dropper Post and Parts

Geometry

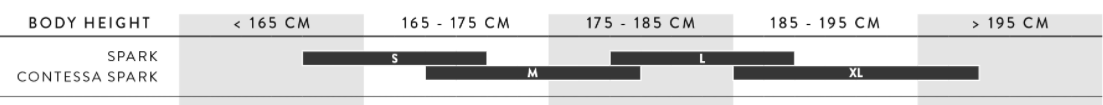

Sizes:
SmallMediumLargeX-Large
A HEAD TUBE ANGLE 65.8 ° 65.8 ° 65.8 ° 65.8 °
B HEAD TUBE LENGTH 90.0 MM 90.0 MM 105.0 MM 115.0 MM
C TOP TUBE HORIZONTAL 561.0 MM 589.0 MM 613.0 MM 641.0 MM
D STANDOVER HEIGHT 759.0 MM 767.0 MM 778.0 MM 801.0 MM
E BB OFFSET -43.5 MM -43.5 MM -43.5 MM -43.5 MM
F BB HEIGHT 331.5 MM 331.5 MM 331.5 MM 331.5 MM
G WHEEL BASE 1,145.0 MM 1,174.0 MM 1,205.0 MM 1,236.0 MM
I BB CENTER TO TOP OF SEATTUBE 415.0 MM 440.0 MM 490.0 MM 540.0 MM
J SEAT ANGLE 75.7 ° 75.9 ° 76.4 ° 76.7 °
K CHAINSTAY 437.5 MM 437.5 MM 437.5 MM 437.5 MM
L REACH 410.0 MM 440.0 MM 470.0 MM 500.0 MM
M STACK 607.5 MM 607.5 MM 617.7 MM 627.0 MM
N STEM LENGTH 50.0 MM 60.0 MM 60.0 MM 70.0 MM
0 TRAIL 107.0 MM 107.0 MM 107.0 MM 107.0 MM
P FORK LENGTH 540.0 MM 540.0 MM 540.0 MM 540.0 MM
Q MAXIMUM SEATPOST INSERTION 150.0 MM 175.0 MM 225.0 MM 275.0 MM
R CRANK LENGTH 170.0 MM 175.0 MM 175.0 MM 175.0 MM

Specs

Frame Spark Alloy SL 6011 Integrated Suspension Technology Flex Pivot / Adjustable head angle Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline
Fork RockShox Judy Silver TK Solo Air 15x110mm QR axle / 42mm offset / Tapered Steerer 2-Modes / Reb. Adj. / Lockout / 130mm travel
Rear Shock X-Fusion NUDE 5 RLX Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Reb. Adj. Travel 120-80-Lockout / T165X45mm
Rims Syncros X-30SE / 32H / 30mm
Hubs Front: Formula CL-811 / 15x110mm
Rear: Formula CL-3248 / 12x148mm
Spokes Stainless Black 15G / 1.8mm
Tires Schwalbe Wicked Will 29x2.4" Performance / TLR / Addix
Bottom Bracket SRAM DUB PF 92 MTB Wide / shell 41x92mm
Crankset SRAM SX Eagle DUB 55mm CL / 32T
Shifters SRAM SX Eagle Trigger
Rear Derailleur SRAM NX Eagle 12 Speed
Cassette/Freewheel SRAM SX-PG1210 / 11-50 T
Chain SRAM CN SX Eagle
Brakes Shimano MT201 Disc
Rotors Shimano SM-RT10 CL / F&R 180mm
Handlebars Syncros Fraser 2.0 DC Alloy 6061 D.B. mini Rise / back sweep 8° / 760mm Syncros Pro lock-on grips
Stem Syncros DC 3.0 Syncros Cable Integration System 0° rise / 6061 Alloy / 31.8mm / 1 1/8"
Headset Syncros - Acros Angle adjust & Cable Routing HS System +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB
Seatpost Syncros Duncan Dropper Post 2.5 31.6mm / S & M size 130mm / L & XL size 150mm
Saddle Syncros Tofino 2.5 Regular
Pedals Sold separately
Accessories & Extras Remote system: SCOTT TwinLoc 2 Technology Suspension & Dropper Remote, 3 Suspension modes

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN
Orange / Small 192820594842 286279006
Orange / Medium 192820594859 286279008
Orange / Large 192820594866 286279010
Orange / X-Large 192820594873 286279012
Blue / Small 192820594798 286278006
Blue / Medium 192820594804 286278008
Blue / Large 192820594811 286278010
Blue / X-Large 192820594828 286278012
